Ize Compose Web Interface

This page documents the browser pages served by Ize Compose in AP Server mode and Wi-Fi client mode.

Open the browser at:

http://192.168.4.1/

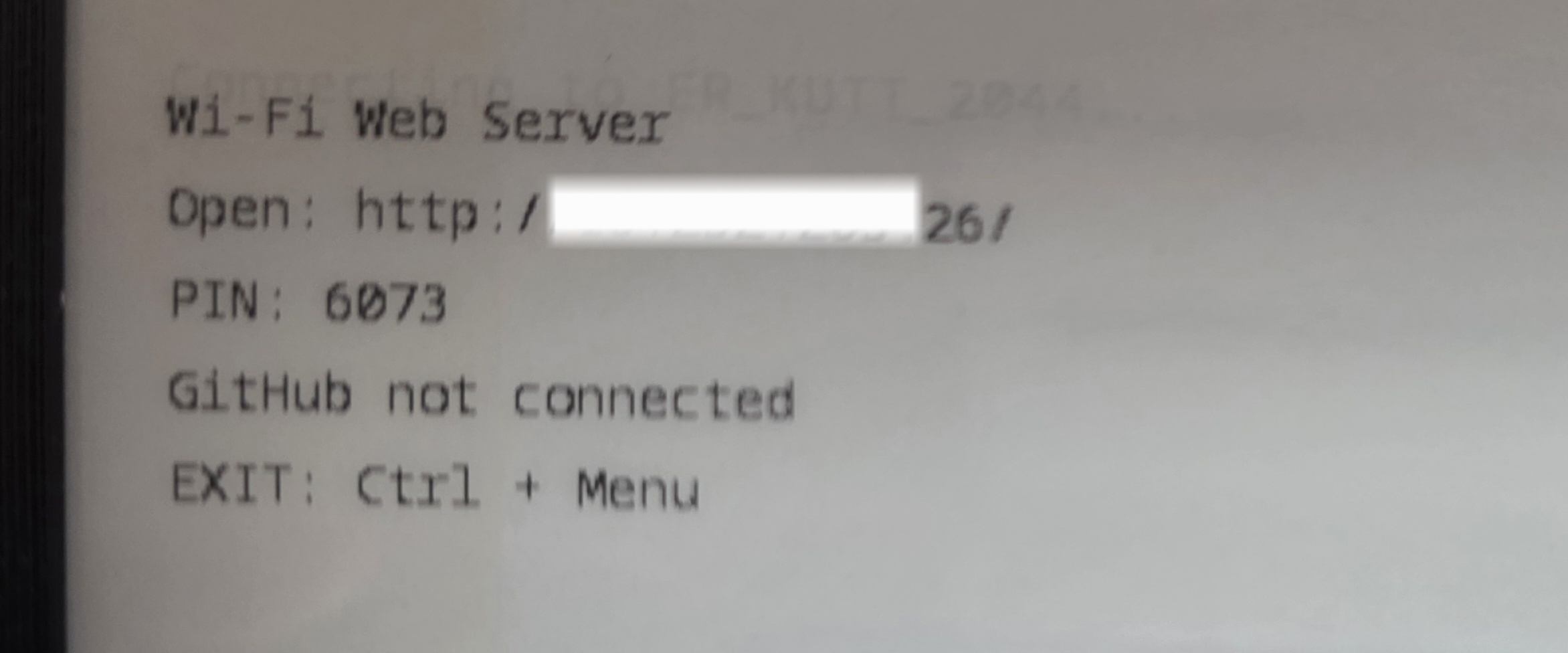

The device screen shows the Wi-Fi name or local IP address, PIN when needed, GitHub sync status, and the exit hint. Use Ctrl + Menu to leave the web mode. Ize Compose web settings

For v1.4.1, the browser setup page can save repository settings for the top-level Sync path.

Document Web Page

Enter from the device menu:

Menu -> Network -> WiFi

The document web page is for text-file management on the SD card and GitHub sync setup. In Wi-Fi client mode, scan visible networks on the device, choose one with the arrow keys, enter the password if needed, then open the displayed local IP address from another browser on the same network. PIN entry is required to open this browser page and save GitHub settings. Later Sync runs from the device without opening the browser again.

Document list

Shows documents in newest-number-first order.
Shows 12 documents per page.
Each row shows file name, short preview, file size, and actions.
The preview is read only for the 12 documents on the current page.

Actions

Action	What it does
`Read`	Opens the selected text file in the browser
`Download`	Downloads the selected text file
`Delete`	Deletes the selected text file after browser confirmation
`Upload Text File`	Saves the uploaded text as the next `doc_N.txt` file

GitHub Sync Setup

GitHub settings are entered from the unified browser page in Wi-Fi mode.

Enter from the device menu:

Menu -> Network -> WiFi

After Wi-Fi connects, open the IP address shown on the device. Enter the device PIN. Scroll to the bottom of the page and use GitHub Sync.

Fields:

Field	Example	Notes
Owner	`ize-studio`	GitHub account or organization name
Repository	`my-private-writing-backup`	Repository name only
Branch	`main`	Existing branch to update
Document path	`documents`	Folder inside the repository where `.txt` files will be written
Token	`github_pat_...`	Token with Contents read/write permission for this repository

After saving these settings, use:

Menu -> Sync

The device will try the last successful Wi-Fi network, upload local text documents to the configured GitHub repository path, show success or failure, turn Wi-Fi off, and return to the menu.

If GitHub settings are missing, or the saved Wi-Fi network is not visible, the device should show an error and fall back to Wi-Fi setup mode.

Unified Browser Page

Enter from the device menu:

Menu -> Network -> WebServer or Menu -> Network -> WiFi

For Network -> WebServer, enter the 10-digit AP password on the device, join IZEcompose_FileServer, open:

http://192.168.4.1/

For Network -> WiFi, connect the device to the selected Wi-Fi network and open the local IP shown on the device. In both modes, enter the 4-digit browser PIN shown on the device page.

The external web page is loaded from:

/ize_compose/ize_compose_1-4-1.html

If that file is missing, the firmware returns an error. Keep this file on the SD card.

Ize Compose wifi PIN

The PIN field is at the top of the web page. The same PIN is required for:

Saving settings
Firmware update
Font upload
Image upload

If the PIN is empty or wrong, the change is rejected.

Environment settings

The Settings & Update tab edits these settings:

Setting	Control	Notes
Sleep Timer	Slider	Stored in firmware preferences
Text Size	Slider	Display scale
Line Space	Slider	Line spacing
Character Space	Slider	Letter spacing
Speed	Number input	Default `0`; changing can affect typing feel
Refresh	Number input	Default `2000`; changing can affect refresh behavior
English Keyboard	Radio buttons	Qwerty or Dvorak
Language	Scroll list	Selects English or a multi-language layout

Press Save to apply all settings at once.

If no value changed, the page reports that no changes were detected.

Settings backup

When settings are saved, the firmware writes a backup file:

/ize_compose/settings_backup.json

This file is for recovery after reset/reinstall. If preferences are empty and the backup exists, the firmware can restore settings, including the saved GitHub token, and save them back into device preferences.

Firmware update

Firmware uploads must use this upload filename:

izefirmware.bin

The page automatically sends the selected firmware as izefirmware.bin.

During update, the firmware stages the file at:

/ize_compose/upload/izefirmware.bin

After a successful update, the staged file is removed to avoid repeated update attempts.

Online update

In WiFi mode, the Settings & Update tab also checks the latest GitHub Release. When a newer release is available on GitHub, the web page shows that an update is available.

Press Online Update to download the release firmware and, when needed, the matching versioned SD web page from the GitHub Release assets. The device shows download progress and starts OTA only after the required release files have been downloaded.

Font and image upload

Font and image uploads no longer require a separate target selector. The filename decides the target.

Examples:

Uploaded filename	Stored as
`initial.png` or any `.png`	`/ize_compose/initial.png`
`hwalja_hangul.bin`	`/ize_compose/hwalja/hwalja_hangul.bin`
`NanumGothic_hangul.bin`	`/ize_compose/hwalja/hwalja_hangul.bin`
`NanumGothic_jamo.bin`	`/ize_compose/hwalja/hwalja_jamo.bin`
`hwalja_latin.bin`	`/ize_compose/hwalja/hwalja_latin.bin`

Supported font suffixes:

latin.bin
hangul.bin
jamo.bin
jp.bin
greek_cyrillic.bin
arabic.bin
indic.bin
sea.bin
misc.bin

SD Card File Checklist

Recommended SD card layout:

/ize_compose/
  ize_compose_1-4-1.html

  settings_backup.json        generated by firmware after settings save
  hwalja/
    hwalja_latin.bin
    hwalja_hangul.bin
    hwalja_jamo.bin
    hwalja_jp.bin
    hwalja_greek_cyrillic.bin
    hwalja_arabic.bin
    hwalja_indic.bin
    hwalja_sea.bin
    hwalja_misc.bin
  upload/
    izefirmware.bin           temporary during firmware update

settings_backup.json and upload/izefirmware.bin do not need to be prepared manually for normal use. They are written by the firmware when needed.

v1.4.1 Unified Page

/ize_compose/ize_compose_1-4-1.html is now the single browser page for both WiFi mode and WebServer mode. It has two tabs:

Documents
Settings & Update

The previous separate property_update.html and document_server.html files are kept only as compatibility copies of this page.

Online firmware update is active in this build. The release update flow downloads both firmware and the versioned SD web page when needed. Local file upload remains the supported path for fonts and initial.png.
